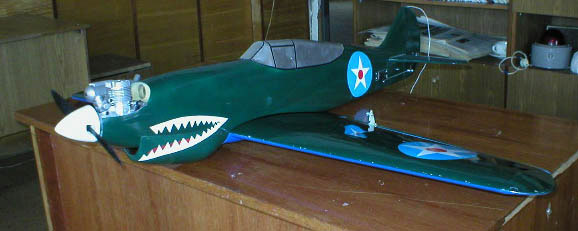

RCCA scale 2548 p40 |
|
This P-40 is designed specially for the new class "2548" for RC-Combat. If you will use all the standard size equipment like the one that comes with most of the radio systems (like Futaba: 3003 or 3004 servers, standard size flat or square battery, 7-Chanel receiver) the weight will be 3.10-3.30 lb. For first flight we recommend CG-center
of gravity to be setup at 1 ½ inch from leading edge in the
center of the wing. |
|
#
|
KIT Includes |
| 1 | Two fuselage halves |
| 1 | radiator scoop |
| 1 | coroplast material for the tail feathers |
| 1 | 15 psi CNC cut foam cores |
| 1 | 72" x 1/8" fiberglass rods for top and bottom spars |
| 2 | 36" x 3/8" x 1" aileron stock |
| 1 | metal rod for connecting two halves of the elevator control surfaces |
| 2 | 1/4 inch wood (for the rubber bands hook up) |
| 8 | bamboo skewers |
|
#
|
ARF Includes |
| 1 | fuselage |
| 8 | bamboo skewers |
| 1 | coroplast tail feathers |
| 1 | 15 psi CNC cut foam cores |
| 1 | 72" x 1/8" fiberglass rods for top and bottom spars |
| 2 | 36" x 3/8" x 1" (ready to be installed) |
| 1 | metal rod for connecting two halves of the elevator control surfaces |
| 2 | 1/4 inch wood (for the rubber bands hook up) |
| # |
Requires: |
| 1 | .25 cu in engine |
| 1 | Remote control radio with receiver, battery pack, 3-4 servers |
| 1 | Roll of bi-directional packing tape |
| 1 | Roll of directional packing tape |
| 1 | 15-30 minute Epoxy |
| 1 | transparent packaging tape |
| 2 | control horns push rods |
| 1 | fiberglass material (which you can get from any local Hobby store) |
| Wing covering material, tape, nylon, etc. | |
| Top Flight Microballoons Filler (optional for mixing with epoxy) | |
| Elmer's Glue-All (Multi-purpose Glue) | |
| 1 | Fiberglass material (you can get it from on of your local hobby stores) |
