Yakovlev-9
The Yakovlev-9 is a further development of the test plane Yak-7DI. Major changes from the basic prototype included the use of the duralumin instead of timber spars in the wing construction. This reduced the weight and allowed more space available for extra fuel tanks.

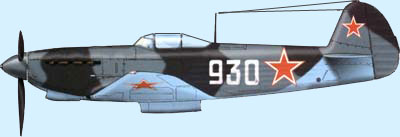

Yak-9 |
The basic fighter Yak-9 was powered by the 1180 hp M-105PF engine and armed with 1x20 mm ShVAK cannon and 1x12.7 mm machine gun UBS. Its production began in 1942. |
There were several modifications of the basic Yak-9, which were built in large-scale quantities and operated in military actions .
Yak-9D was a long-range escort fighter equipped with extra fuel tanks. Fuel tanks capacity increased to 650 l in comparison with 480 l on the basic airplane. Range increased to 1400 km.
Yak-9DD had a capacity of fuel tanks of 850 l, which increased its range to 2300 km. An air division of Yak-9DD was based in Italy and operated as an escort for US bombers on their shattle raids to bomb Romanian oil fields with landing in Ukraine.
Yak-9M (introduced in 1944) was a further modification of Yak-9D. Major changes included the cockpit shifted 400 mm to the rear and emergency ejection of the canopy.

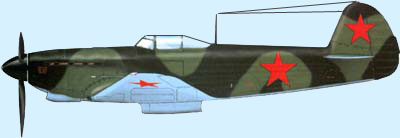

Yak-9T |
Yak-9T was a 37mm cannon armed modification with cockpit/canopy similar to Yak-9M and the basic Yak-9 fuel capacity. Its 37 mm shells were able to penetrate 48 mm armour and were used as anti-tank weapon. |
Yak-9K was a 45 mm cannon armed modification of Yak-9T.
Yak-9B (introduced in 1944) was a bomber-fighter modification carrying 4x100 kg bombs in an internal bay behind the cockpit or 128 anti-tank cassete bombs.
Beginning from the year 1944, many Yak-9 airpalnes were equipped with more powerful VK-105PF2 engine (1240 hp).

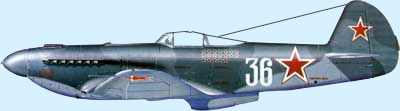

Yak-9U |
Yak-9U was one of the latest serial production modifications with improved aerodynamics, a 1500 hp VK-107A engine and 2 (instead of 1) 12.7 mm machine guns. The maximim speed of Yak-9U reached a value of 700 km/h. |
Modification | Yak-9 | Yak-9D | Yak-9B | Yak-9T | Yak-9U |
Wing span, m | 9.74 | 9.74 | 9.74 | 9.74 | 9.77 |
Length, m | 8.50 | 8.50 | 8.50 | 8.52 | 8.55 |
Engine | M-105PF | M-105PF | VK-105PF | M-105PF | VK-107A |
Engine power, hp | 1180 | 1180 | 1180 | 1180 | 1500 |
Empty weight, kg | 2280 | 2350 | 2300 | 2500 | |
Take off weight, kg | 2800 | 3100 | 3350 | 3060 | 3150 |
Max speed at ground level, km/h | 525 | 542 | 507 | 533 | 600 |
Max speed, km/h (at altitude, m) | 600 (4300) | 607 (4100) | 562 (3750) | 605 (3900) | 700 (5500) |
Range, km | 950 | 1400 | 1000 | 1000 | 1000 |
Time to climb to 5000 m, min | 4.9 | 6.0 | 6.8 | 5.0 | 4.1 |
Armament | 1x20
mm cannon ShVAK 1x12.7mm machine gun UBS |
1x20
mm cannon ShVAK 1x12.7mm machine gun UBS |
1x20
mm cannon ShVAK 1x12.7mm machine gun UBS 4x100 kg bombs |
1x37
mm cannon HS 1x12.7mm machine gun UBS |
1x20
mm cannon ShVAK 2x12.7mm machine guns UBS |
